Welcome to Jay Nugent's (WB8TKL)
Household 12-volt D.C. Solar Power System


This Primer covers how I went about wiring my house for 12-volts D.C.

Having rewired conventional 110vac light fixtures for 12-volts, using Solar panels, an MPPT Solar Charge Controller, and a small bank of Deep-Cycle batteries, my home is becoming more independent of the commercial electric grid.

Now my lighting and communications are all immune from power failures, all while reducing my monthly expenses and my Carbon Footprint.


Purpose:

      The purpose of this webpage is to show others how easy it is to install and operate a Solar Power system for your home. Nothing says that you must convert Solar power into 110 volts A.C. (Alternating Current) as most Solar installations do. This is costly and in my view, very inefficient. Every power conversion comes with additional expense, complexity, energy loss, and yet another point of failure. So my home power system uses the D.C. (Direct Current) power produced by the Solar panels that has been stored in a battery bank, and then used to directly power LED lights and other devices found throughout the home.

      To accomplish this, I have rewired many conventional light fixtures throughout my home to operate with either 110vac or 12vdc seperately, or at the same time. These modifications are easy to implement and don't require you to be an engineer or an electrical wizzard. The most time consuming part of the project was fishing of the 12vdc wiring through the attic, walls, and basement to get 12 VDC to each of the lights/devices safely. I strongly recommend taking some time to sit back and think through your specific needs, considering your homes construction before running any wires. A little time spent planning will pay off in the long run if you consider all the issues and you think it through thuroughly. Having experience pulling alarm, telephone, and power cabling in my younger years, I have developed the skills and techniques to do these jobs efficently. Though at 60 years old they are NOT as easy a task as they were when I was a much more flexible 20 year old!

      A benefit to 12VDC Solar Power is that my lights will never go out, even after MONTHS or even YEARS of having no commercial power. Another is that Solar Power offsets a fair chunk of my monthly DTE Energy bill by providing the 12 volts D.C. that is used to run several Ham Radio rigs (both my wife and I are Ham/Amateur Radio Operators), alarm system, and lighting throughout our home. Every little bit helps, and each month or two I add yet another improvement or expansion to the existing system. This is convienient, because I don't have to jump into a Solar power system all at once, nor lay out a bunch of cash or take on a huge wiring project, all at once. This lets my "learning curve" evolve a little at a time, thereby avoiding what could perhaps turn in to some rather expensive mistakes. Take your time and plan ahead.

      With regard to migrating off commercial power and onto solar a little bit at a time - I happen to watch a fair amount of TV. While we tossed the big old energy hungry CRT TV sets awhile ago, the newer flat screen TVs are far more efficient. As it happens, they are typically powered by a "brick" power supply much like those used for laptop computers. My flat panel TV requires 19-volts DC and consumes up to 60 watts. So I aquired from Amazon a couple DC-to-DC converters that allow me *step up* the 12 volts to 19 volts to run the TV set. By getting this 60 watt load that is powered ON for many hours every day moved onto FREE Solar power, should result in a marked decrease in my monthly power bill!!!

      So the overall theme here is, DO SOMETHING, DO ANYTHING! Just do little baby steps toward gaining your independance from the commercial power lines. Every step forward is a step in the right direction!

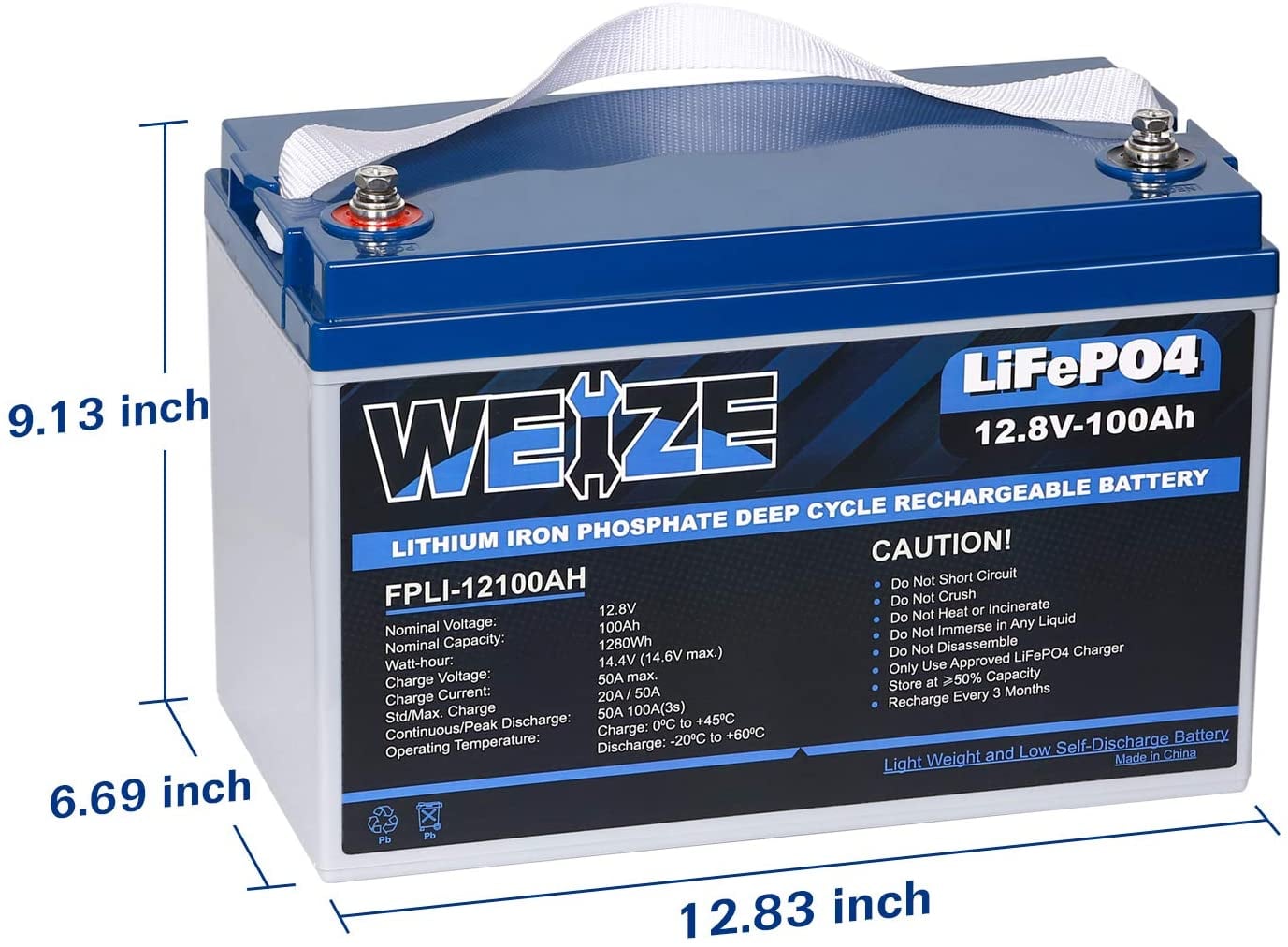

Batteries:

      We will start with the core of the system, and that is the Battery Bank. This is where we draw power from to run all of our lights, radios, TV, Laptop, and other devices, known as "loads". The batteries are the core component of our power system. All loads run off of the batteries, while all the power we generate for free from the solar panels, is pumped into the batteries to keep them charged.

      The Battery Bank MUST be able to provide ALL of our power needs throughout the night, and on those bad weather days when the Sun is not shining due to rain, snow, or simply cloudy and overcast. The suggested goal is to have enough Battery Capacity to run ALL your needs for at least THREE DAYS without requiring a recharge. That can sometimes be a real feat to accomplish! I currently have only enough battery capacity for ONE or TWO days, and perhaps more if I shut off a few things and limit my usage. But start SOMEWHERE! You can always add more battery capacity later as you can afford it or as your requirements grow.

      We start with a bank of wetted-cell lead-acid deep-cycle batteries. Though my Ham Radio batteries were originally old car batteries, I later replaced them with 55 Amp/Hour wheelchair batteries. These were better as they were meant to be discharged daily, while car batteries are not. Then as my needs continued to grow I replaced those with 6-volt Golf Cart batteries as they have MUCH more capacity (Amp/Hour Rating) and are designed for daily deep cycle use. Costco sells such Golf Cart batteries for $85 each ($100 if you don't turn in a dead battery as a "core"). A pair of 6-volt Golf Cart batteries provides me with a dependable deep-cycle supply of 210 Amp-Hours (for each 12-volt string). More "strings" can be added as money allows or needs dictate.

      In this photo (this is not my battery bank, but a nice example) you can see where three 12-volt strings of batteries have been placed in PARALLEL to combine their respective Amp/Hour rating into a much larger capacity bank. Let's say that each 6-volt Deep Cycle battery has an AH rating of 210 AH. Two 6-volt batteries in SERIES gives us 12-volts, but the AH capacity of the string is still 210 AH. By putting three strings in parallel (assuming all the batteries are of the same capacity) we still have 12-volts but we now have an Amp/Hour capacity of 630 AH.

I *highly* recommend keeping battery cables tight and clean, and all cables should be of the largest wire gauge practicle. This assures the lowest losses. Smaller gauge wire will act like a resistor as large currents run through it. It is also better to extract the POSITIVE lead from one end of the bank (large RED cable in the top left of the photo) and the NEGATIVE lead from the opposite end (large WHITE wire in the lower right of the picture). This is to cause the current flow through each battery AND CABLE to be equal as much as possible. Some battery banks even cross-connect between each of the 6-volt batteries to reduce any imballances in the bank.

      Since all batteries have a bare minimum Terminal Voltage that you should NEVER discharge below, we will need to assure that the Battery Bank never discharges below that point. The rule is to NEVER let a 12-volt string discharge below 11-volts or permanant damage WILL occur! So we will keep the batteries charged using two methods. First, the FREE method, and that is to use an array of Solar Panels combined with a Solar Charge Controller which will keep the battery bank topped off at between 13.5 and 14.4 volts. This keeps everything running and provides a charge (or re-charge) to the batteries whenever we have sunlight. More on that, later.

      But sometimes you just won't get enough Sun to make ends meet (weather, shorter Winter days, etc.). So at these times we need some kind of backup system. Enter the Backup Charger. This is nothing more than a regulated power supply that keeps the batteries charged to a specific terminal voltage. A voltage of 13.2 is a "float" charge level that keeps the batteries fully charged while not causing any off gassing. Fully charged batteries under load *should* hover around 12.6 volts. But once they start to drop below this voltage, they have begun to discharge. So we like the backup charger to maintain a voltage somewhere between 13.2 and 13.6 volts to keep the batteries fully charged while not off-gassing.

Backup Charger:

      In my basement office and combined Ham Radio Shack, are my battery bank and much of my Ham Radio equipment. The batteries are close to the Ham Radio equipment because they are the largest current hog, or LOAD, that are ever put on the batteries. While transmitting I will typically draw anywhere between 5 and 20 Amps. So cabling is kept as short as possible to reduce what are called "IR Losses" (the voltage droped across the resistance of the wire).

For the same reason, the Charger is kept close to the battery bank. The Charger is a simple Astron RM-12A 12-volt 12-amp (144 watt) rack-mount power supply. This supply is able to keep the battery bank State of Charge topped off sufficiently while a number of radios are turned on or in use, and some loads for lighting are also in use. This has served me well as my "Shack" power source for many many years.

The backup charger is *rarely* ever turned on, but is ready in case there has not been sufficient sunlight to keep everything running as it should. Remember, try to size your battery bank to support ALL your needs for THREE DAYS, preventing the the Terminal Voltage from dropping to where you will need to recharge them. Then if you still don't have a clear weather day, you can always resort to turning on the Backup Charger to return them safely to a full charge before any damage is done.

Solar (PV) Panels:

      The primary source of power comes from an array of solar panels, also known as "PV" or Photo Voltaic cells. The panels I am using are flexible (Amorphouse) rather than the typical glass/fixed panels. Each strip has 22 cells and can produce a maximum of 128 watts. They are 19-feet long and 16-inches wide and have an adhesive backing as they were intended to be installed in the troughs of metal roofing. These are not the most efficient per square foot, but the price was right - and I have plenty of roof space to fill. The PVL-128 has an "Open Circuit" voltage of 33 volts. This is the voltage the panel can output under no load. When matching a Charge Controller with your panels you MUST not exceded the maximum input voltage for the charger! You must also not excede the maximum input current. So PLAN your installation accordingly.

      Being Amorphouse, the PVL-128 panels are only 8.5% efficient, compared to the solid glass-like Crystaline panels which can be up to 18% efficient. You can WALK on my panels, but you wouldn't try that with the Crystaline/Glass panels. These efficiencies are based on a *perfect* conversion of sunlight to electrical energy. NO panels are very efficient in this regard, and the PVL-128 panels are only about half that of a modern panel's efficiency. So if I were to put TWICE as many square feet of panels on the roof, I will have just as much power as if I were using modern Glass panels. But these were CHEAP! A THIRD the cost of a comparable panel. When Uni-Solar was closing its doors due to bankruptcy, they were unloading these panels for only $50 each. FAR less expensive than the glass panels of the day. Still a great bang for the buck! So I scarfed up as many as I could afford. Several are on the roof of my garage, while my remaining panels are in storage for future use.

      Modern day solar panels cost in the vicinity of 50 cents to $1 per Watt. So my PVL-128 panels *should* have cost me anywhere between $65 to $128. A 250-Watt glass panel had been selling for $300 each, but now sell for much less than this, depending upon manufacturer and provider.

      You must understand that *efficiency* per square foot is ONLY important if you have very limited square footage to install panels on. I have an abundance of South-facing roof on both my garage and my home, and I can place "racks" in my side yard, if necessary. So efficiency per square foot wasn't my concern, but money out of pocket to get this project started, was!

I'll note here, that many people hold off purchasing solar equipment because the price continues to drop and the efficiency continues to go up. This is called "Market Paralysis". Where you NEVER get a solar system installed because you are constantly waiting for the next improvement in the technology or drop in price. So you totally miss the bus!!! Do SOMETHING! And do it NOW!!! Like any technology, in the future you can always buy something newer or better. Buy it NOW, then you can always sell off your older gear to a friend or neighbor who wants to get started but can't afford the latest and the greatest.

      On my gargage roof I have mounted FIVE Uni-Solar PVL-128 panels. This is only temporary as the roof is VERY worn out (shingles are curling up) and is slated to be replaced, soon. Only TWO of the panels are connected to the Charge Controller in the house via an 80-foot run of 4 conductors of 8-gauge cable. At a maximum of only 4 Amps per panel, the voltage drop across that length of 8-gauge was only about 0.5 volts (0.25 volts per conductor). This is an insignificant loss when the panels produce 33 volts or more in bright sunlight.



Solar Charge Controller:

      Every solar system should have a trustworthy way to take the energy from the solar panels and apply it to the battery bank with the expectation that the batteries will receive their maximum allowable charge without concern of them becoming overcharged or damaged. The purpose of the Solar Charge Controller is to manage the voltgae and current from the panels, and apply it to the batteries in the most efficient manner to maintain the proper terminal voltage (13.5-14.4) while not exceeding the proper rate of charge (current). You've got a lot invested in the batteries and you don't want to damage them - nor any of your devices attached to the batteries.

      Some charge controllers simply pulse the FULL VOLTAGE output of the solar panels (mine can put out in excess of 40 volts on a cold day) into the batteries at a *duty cycle* to approximate 12 volts. This is called PWM (Pulse Width Modulation). Though the batteries will typically absorb these pulses of high voltage, and the battery will *buffer* the voltage spikes, they are rather inefficient since the pulse is TURNED OFF much of the time, and during that time you are NOT getting any energy from the Sun. PWM is considered only about 50% efficient. But wait! There IS a better way!

      Enter MPPT (Maximum Power Point Tracking). Without going into all the "magic" that MPPT does internally, let's just say that MPPT controllers don't do the high voltage spikes and typically are 98% (or more) efficient. They get nearly ALL the energy produced by your PV panels into your battery and/or loads.

      The Solar Charge Controller I use is the "Apollo" MPPT Solar Charge Controller made by DIY Solar For U [www.DIYSolarForU.com] located in Troy, Michigan.

      The Apollo Solar Charge Controller can accept up to 50 VDC from the PV panels at up to 255 Watts maximum. Using MPPT technology, it can output up to 16 Amps, or roughly 230 Watts, output power to the battery and loads. It is roughly 98% efficient so hardly any heat is wasted. A mighty fine little workhorse for only $125.

      Multiple "Apollo" units can be attached in parellel (on the Battery side of the controller) to allow a larger array of solar panels to charge and maintain one battery bank. So if you need more than 230 Watts of solar production, just add more panels and controllers. Thus far, my needs have not exceeded what this controller can provide. Someday I expect I will need more, but the Apollo is one of the least expensive MPPT controllers on the market. And the company owner is a Ham Radio operator, so he's alert to making certain that his design does NOT interfere with any of the Ham radio bands. That to me is an added bonus!



Circuit Breaker Panel:

      So we have our batteries. And we have our backup charger. And we have our PV panels and a way to take that energy and put it into the batteries through a charge controller. Now we need to distribute that energy to the loads - the lights, the fans, the motors, the TV, or anything else we may want to run. But we need to do it SAFELY! We want wiring that doesn't burn the house down and some way to turn off circuits when we want to service them, and most importantly, turn them off automatically when something has gone wrong. We use DC Circuit Breakers to appomplish this.

      Most circuit breakers are intended for AC use. When they disconnect, arcing across the contacts is limited because with Alternating Current, the voltage drops to zero every 16 milliseconds. So any arc across the contacts is extinguished very quickly.

      But with Direct Current, that arc inside the breaker *can* quickly damage the internal contacts, and can sometimes arc weld themselves together causing the breaker to NOT break the current path! So breakers designed for DC have special mechanical designs that quench the arc mechanically by sliding a non-conductive shield between the contacts as the current path is opened. More complex methods of arc supression exist, but are beyond the scope of this website.

      Here we see a 19-inch rack mount panel containing several DC circuit breakers. Each circuit within the house has a circuit breaker for the protection of the wiring. We want the breaker to open up the circuit BEFORE the current being drawn is greater than what the gauge of the wire can carry. Too much current for a particular gauge wire can cause the wire to heat up or melt. THAT would be a fire hazzard and we don't want that! So, for a smaller diameter wire we use a circuit breaker rated for a lower current (Amperage). A larger diameter wire can carry a larger amount of current, so a larger circuit breaker is used. There are many charts available online that tell what the maximum current capability is for any particular gauge of wire. I suggest you become familiar with these ratings and abide by them.

      You should never mix thin gauge wires with heavy gauge wires on the same breaker, unless the breaker is rated for the for the THIN wire. It is entirely practical to use heavier gauge wires to reduce the voltage drop across a long run. So a large wire might very well be used for low current loads.


      Starting from the far right, the circuit breakers are as follows:

      10-Amp --- PV Panel Input to the Charge Controller (2 PV panels @4A each)
      25-Amp --- Charge Controller Output
      100-Amp -- Main Solar Battery Bank (210 AmpHours)
      12-Amp --- Battery Bank Tie (between the Solar batteries and the Ham Shack batteries - 150 AmpHours)
      12-Amp --- (not currently in use)
      10-Amp --- (not currently in use)
      10-Amp --- Bathroom Light & (future Laundry room light)
      10-Amp --- Kitchen Sputnik Lamp & Hallway Light
      5-Amp ---- Kitchen Under-Cabinet strip of LEDs w/dimmer



Distribution Wiring:

      Obviously, wiring of low-voltage DC circuits is not harmful to life and limb as a shock hazard. But be assured that the DC currents involved *can* cause excessive heat, resulting in the melting of wires and insulation! The potential current available from a large battery bank can be HUGE and the effects can be dramatic and quick, should a short occur. So we MUST take precautions to prevent and protect our wiring from scorthing our household belongings, rugs, furniture, or from burning the house down!!! By selecting the correct Gauge wire for the expected load and by fusing it (breaker) properly, will protect us from having a bad experience, or worse.

      To deliver an equivalent amount of POWER over a 12 VDC circuit requires TEN TIMES as much current as it does over a 120 VAC circuit. And to deliver ten times as much current requires a MUCH thicker (larger Gauge) wire. Thankfully, many of our 12 VDC devices are efficient and don't draw much current, so the Power can oftentimes be rather low. But some devices will need HIGH amounts of current, and will need MUCH heavier wire and preferably shorter cable runs to be practical.

      The rule to keep in mind is the "IR" rule. Don't confuse this with the I2R rule, we are working with Direct Current here so there are no phase angles involved in the calculation. Simple IR losses need to be taken into account when designing our wiring distribution plan. Current (I) times the Resistance (R) of the length of wire bing used, determines our Voltage Drop. And we like to have as little Voltage Drop as possible. While LED lights may not be terribly sensitive to a slight drop in voltage, a fan or refridgerator will be. So understand these losses and design a wiring distribution plan that accounts for them. To make our lives a bit easier, also try to place HEAVY loads nearest to our battery bank as possible and use the heaviest Gauge cable for these runs.

      As an example, let's say that we have a 100-foot run of wire that has 0.5 Ohms of resistance, keeping in mind that we need to account for both the path out to the device AND the path back from the device, or 200-feet. If we were to put a 3-Amp load on the end of that cable, and the cable presents a 0.5 ohm resistance, we would suffer a 1.5 Volt Drop across the 100 foot cable pair. If we had 13 volts at the battery bank, that only leaves us with 11.5 volts at the device we are trying to power! All due to only a 1/2 Ohm of resistance.

The math goes something like this:

      3 Amps times 0.5 Ohms equals 1.5 Volts dropped across that resistance

      But if we were to use a much larger gauge wire that has HALF as much resistance (0.25 Ohms rather than 0.5 Ohms) then we can reduce the voltage drop to only 0.75 volts, thus delivering 12.25 volts to the device. The larger the gauge of the wire, the lower its resistance per foot.

      As you can see, the IR loses can become significant in low-voltage systems. So pay very close attention to the gauge of wire/cables used, and pay attention to tight low-loss connections, as these will add resistance to the cable loop. Our goal is to have minimal voltage drop. Each loss adds up and will effect the performance of your power system. We want our fans to run strong and our lights to be bright, so it is best to have as much of the 12 to 14 volts delivered to our end device as possible without IR losses.

      The charts below will help you determine what gauge wire to use for the desired load current. Keep in mind that these numbers are based on Copper wire. Aluminum or other metals conduct electricity differently, and have different resistances-per-foot for a particular Gauge. If you are using something other than copper, be sure to look up the correct tables for your needs.





Modifications to Existing Lamps & Fixtures:

      There are all sorts of 12vdc LED lights available. My preferance has been those that give off as near to natural white light as possible. Many 110 volt CFL screw in bulb replacements have a yellowish tint to them, making reading under such light uncomfortable. The 110 volt LED screw in replacements are much better, and give off a more natural light, but we want to avoid needing 110 volts AC altogether.

      My prefered 12-volt LED is the type 5050. This LED has a Color Temperature close to natural white light, almost as good as the Sun shining into a room on a clear day. Lucky for us these 5050 LEDs come available on a small panel containing 48 LEDs. This panel has an adhesive back, making them very easy to attach almost anywhere. They draw approximatly 7-1/2 Watts per panel, and Amazon sells them for about $3 per pair.

      There is a smaller version of the 5050 panel containing only 15 LEDs that also sell on Amazon for about $6 for a pack of 6. These are excellent for Night Lights in stairwells, hallways, closets, pantrys, or anywhere you need enough light to see well enough not to trip over something.


      Most everyone has seen LED Strip Lights, as these decorate so many stores, bars, and public areas these days. They come in many varieties from just white to colors to colors like a rainbow that change randomly. You can get them in weatherproof as well as non-weatherproof varieties, and they also have an adhesive backing so they can be stuck nearly anywhere. I use these under my kitchen cabinets to light my counter top. By using a small $3 PWM brightness controller I can adjust the brightness to just the right amount of light! These too, are available through Amazom and typically are about $1 per foot.





UNDER CABINET LIGHTING IN THE KITCHEN:

      Under-Counter lighting is the big thing these days, and we can all see why. Being able to better see what we are doing on the counter where all the work is being performed is monumental. Lighting those items we keep under the cabinets means that we can easily read the lables on canisters - no more will you pour salt into a recipe when you wanted to add sugar. Cabinets and countertops also look cleaner and better organized when they are well lit. They are also easier to clean when you can see what you are doing.

      My under-counter lights are left on 24-hours per day, though they are sometimes dimmed at night. Rarely do I have to turn on a light when fetching a snack from the fridge and a plate or bowl to put it on.

      This was an easy install. Two rolls of 16-foot type 5050 LED light strips were purchased via Amazon. Type 5050 LEDs as I explained earlier, are very close to natural white light. The strips run directly off 12 volts and despite the number of LEDs, are quite low in power consumpsion. I added a PWM Dimmer to control their brightness, dim at night like a night-lite, and bright when working in the kitchen. I'll cover the PWM Dimmer in more detail in a moment.

      The LED strips are adhesive backed, so CLEAN the surfaces they are to mount to very well. Nothing sticks well to old kitchen greese. I not only cleaned, but I applied a fresh coat of paint - hey, I was redoing the cabinets anyway. PLAN the job carefully. Pre-drill all the holes in the bottoms of the cabinets and inside shelves so you won't have any dust getting into the adhesive. Apply about a foot at a time being carefull to get them straight the first time. Working upside down CAN be tedious, so take your time. And trust me, they don't peel off easily if you have to make any corrections. There are solder tabs at the ends of the strips, so joining the two strips was easy. I lucked out that the joint was inside the last cabinet, so my joint is well hidden. There are CUT points printed on the strips. You can safely cut the strip to length when you have reached the end of your cabinet. Do this with the power OFF!

      The PWM Dimmer is located where the 12 VDC power feeds the LED strip. It is a small box with screw terminal connections for 12v input and Load output. I located the Dimmer up underneath the cabinet in a convienient location. The knob is easy to reach, yet out of the way. Again, an inexpensive buy off Amazon for only $3.

      Running the LED strip under the cabinet is one thing, but I was perplexed with how I was going to continue the strip over the Kitchen sink behind the Valence? I didn't want to have any more connections that could possibly fail than necessary. Then it struck me. Rather than cut the LED strip, I found it was much more easy to route the strip through the cabinets. This offered a feature that I have since found to be quite handy. I no longer reach inside of a dark cabinet to grab a cup or bowl or plate. The interior of the cabinets on either side of the sink are well lit inside! Again, keeping it simple has resulted in a feature that makes life living independant of the grid so much nicer.

      Light over the sink is just as handy as having it on the countertops. So the LED strips are run directly behind the scalloped valence, offering just enough light to perform simple sink duties without having to turn on any brighter, more costly lights. The 110-volt fluorescent gets turned on when the heavy duty work is being done in the sink. Maybe someday even that light will be replaced with a more efficient high-intensity LED.




HALLWAY LIGHTING:

      Our hallway that connects two bedrooms, the bathroom, and leads to the livingroom, has never had a ceiling lamp. This was a dark area and oftentimes a problem. So with our 12-volt reconversion of the household, it was the right opportunity to add a proper light at very little cost.

      It started with an inexpensive $12 light fixture from Home Depot. The 110vac bulb socket was removed which left a lot of flat metal surface to attach a pair of 48-LED type 5050 flat panels. These panels have an adhesive backing so they were VERY easy to attach. Each panel uses roughly 7-1/2 Watts at 12vdc, so two panels gave off a LOT of natural white light (produced by the type 5050 LEDs) for only 15 Watts of power input.

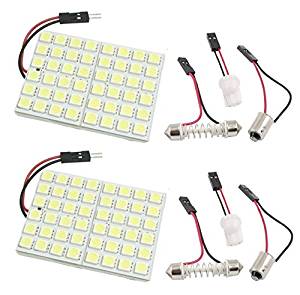

      The 48-LED 5050 Panels were aquired through Amazon for only about $6 per pair. These come with an assortment of light socket adaptors. I snipped the connector off a couple of these and used the pre-wired connector to make an easy connection to my 22-gauge wiring, putting the two panels in parellel.

      The 22-gauge was then routed in the attic and down the wall to a standard "paddle" type light switch. At these low currents, the contacts in the switch should last for many tens of thousands of operations.





LIVINGROOM LAMPS:

      With just a little work in the shop, it was easy to manufacture a simple addition that mounts onto the Halo of almost any typical table lamp. Just two lengths of 1/2x1/2x1/8 inch angle aluminum, a pair of bolts, nuts, washers, and this aluminum frame easily clamps onto the Halo with enough room to leave the 110-volt bulb (preferably a low-heat LED) in the original socket.

Two 48-LED flat-panels are stuck onto each of the aluminum bars. It's convienient that these light panels come with an adhesive backing - just peal and stick! One panel is facing upward and one facing downward. These are controlled with a 4-position rotary switch, the type used in older 3-way lamp fixtures. One click turns on the bottom light panel, the next click turns on the upper light panel, another click turns them BOTH on, and the last click turns everything off. Rinse and repeat!

      Light can now be directed directly down for reading, and with the 5050 natural white light LEDs, it is very easy on the eyes. And light can be directed up at the ceiling. Most ceilings being white, the light scatters all around the room and provides very good coverage. And with both lights on, you have the best of both worlds!

      The switch is only dangling out in limbo, temporarily. I have purchased a pair of small gray plastic boxes where the 3-way switch will be mounted. All wiring will be neatly tucked away inside. The boxes will be strapped to the lamps, placed on either end of the couch. This will present a much cleaner look. It will also be much more stable when reaching for the switch if it is securly fastened to the lamp.





KITCHEN LAMP:

      This "Sputnik"-like kitchen lamp hangs over the dinner table. It originally had Halogen 12-volt bulbs inside each of the colored stars. These ran on a 110-volt to 12-volt switching power supply inside the base of the lamp. It was a power hog, each bulb created a LOT of heat, and they would fail rather quickly trapped inside the star where they received no cooling. More so, the blasted switching power supply made all sorts of RFI noise on the 75-meter Amateur band. I'd have to turn this lamp off anytime I was operating on 75-meters. Well, that's not good.

      The obvious solution was to remove/disconnect the switching power supply and run this lamp on 12-volts DC. Then, to reduce the wasted energy that the Halogen bulbs created, I replaced all of the Halogen bulbs with 12-vdc LED bulbs. Now the lamp runs cool and quiet.

I also used 3-Way light switches to control the 12-volt feed to the lamp. So there are light switches on both ends of the Kitchen, making it easy to turn on or off from both ends of the room. They wire up just like they do for 110-volt use.




BATHROOM LAMP:

      In my bathroom there are 110-volt LED lights above the mirror. This is VERY bright for doing that closeup, carefull work on one's face. But for showers and other activities performed in the bathroom I have added a pair of 48-LED flat panels to a 110-volt fixture that is a combined light and exhaust fan. The exhaust fan is rarely ever used, but it is still functional should I ever desire to run it.

      The LED panels mount on the flat metal surfaces between the 110-volt bulbs. This way they are not blocked by the bulbs and spread a good amount of light into the bathroom. Being a rather small room, two 48-LED panels was more than enough for such duty.

      Power is brought up from the basement (Laundry room) to this "paddle" switch. It is simply cut into the drywall and held in place with two drywall screws. That's the beauty of low-voltage wiring, as you don't need to install an electrical box. The wires then procede up the wall into the attic and across the rafters to the light fixture.

      Here is a view with the cover plate removed. As you can see, they are extremely easy to install since no box is required. Just cut the opening for the switch, fish your wires inside the wall, attach to the switch, and mount the switch using two (or four) drywall screws. Attach the cover plate and enjoy!




FUTURE PROJECTS:

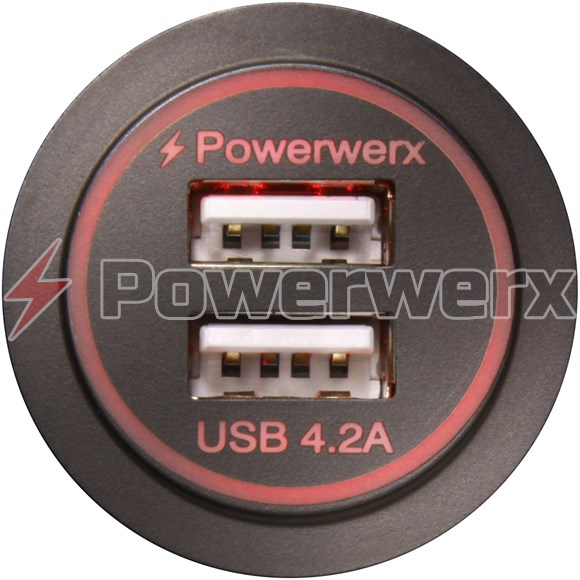

      USB outlets for cellphone, tablets, and other devices (why run a Chinese wall-wart and risk a fire?)

DC-DC Converter to run Laptops and Flat Panel TV sets

Ceiling fans (lightingdirect.com)

More Night Lights

Modify LED "fluorescent" 4-foot light fixtures

12-volts water pumps for wells and whole-house water filtration system

12-volt pumps for Rain Water Catchment system to water lawns and gardens

Yard Accent Lighting -- change incandescent bulbs to LED and run on 12-vdc (use an Arduino/PIC/R-Pi as timer)



"You Cannot Manage What You Cannot Measure":

      Measurements/Monitoring/Data Collection




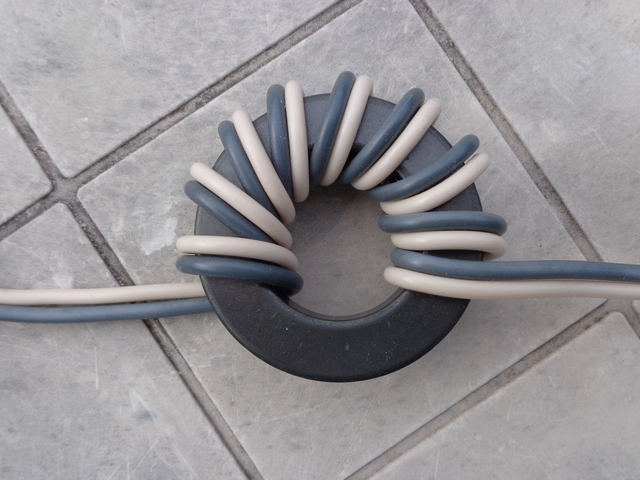

Misc:
