Jay WB8TKL has experience building *TWO* Mobile Command Centers for the Monroe County OCP - Office of Civil Preparednessi. The first was a 1954 BlueBird school bus that a few years later was replaced with a MUCH more capable 10-wheel drive M220 Military Shop Van.
I also lead a team that met once per month to build-out the Red Cross Comm-Center. THAT served as a ARROW Club Station for many years :)

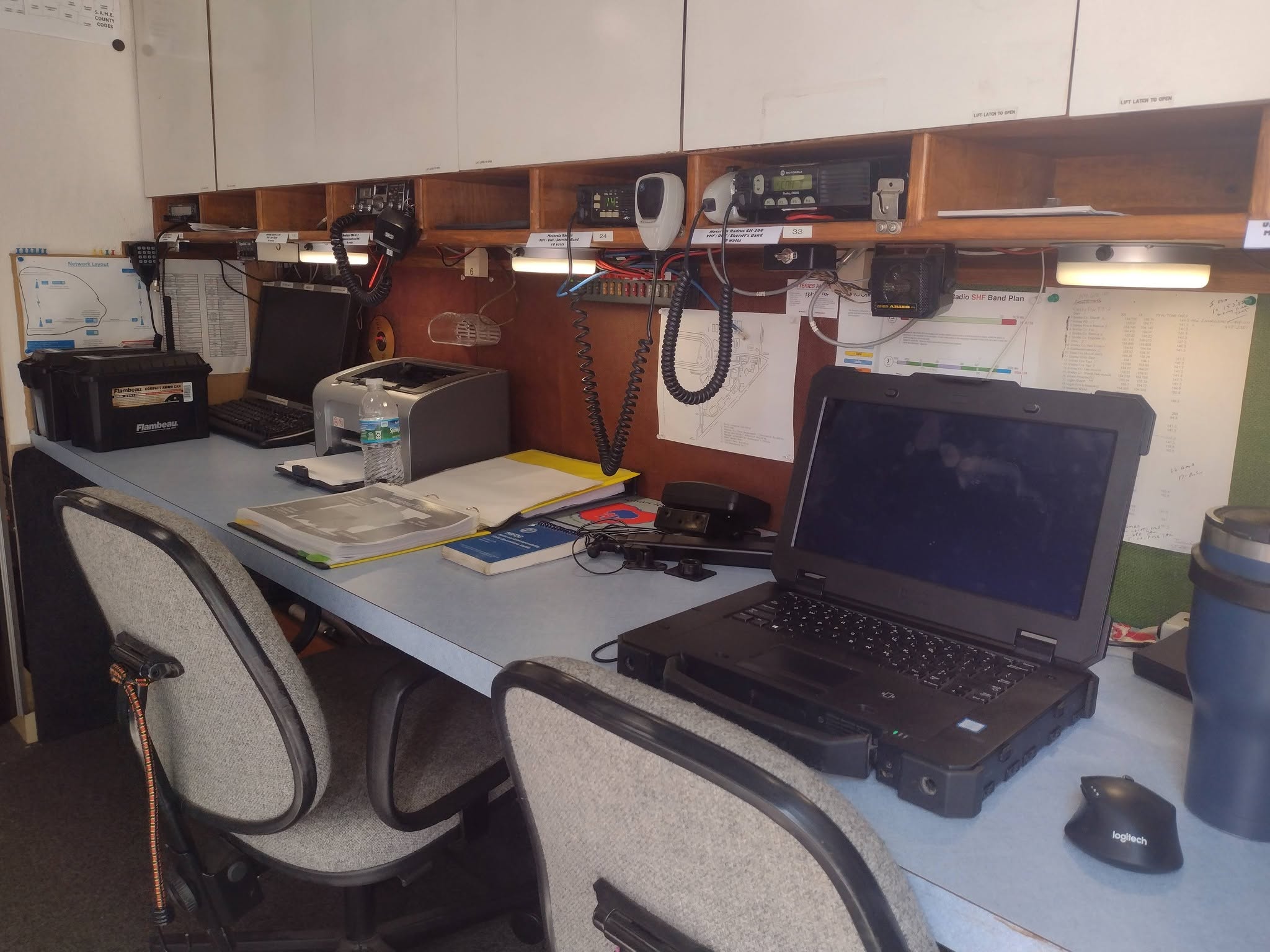

This picture was taken at Hamvention in 2026.... and of all the Comm trailers I have seen on display at Hamvention, this one is my favorite design for a number of reasons.

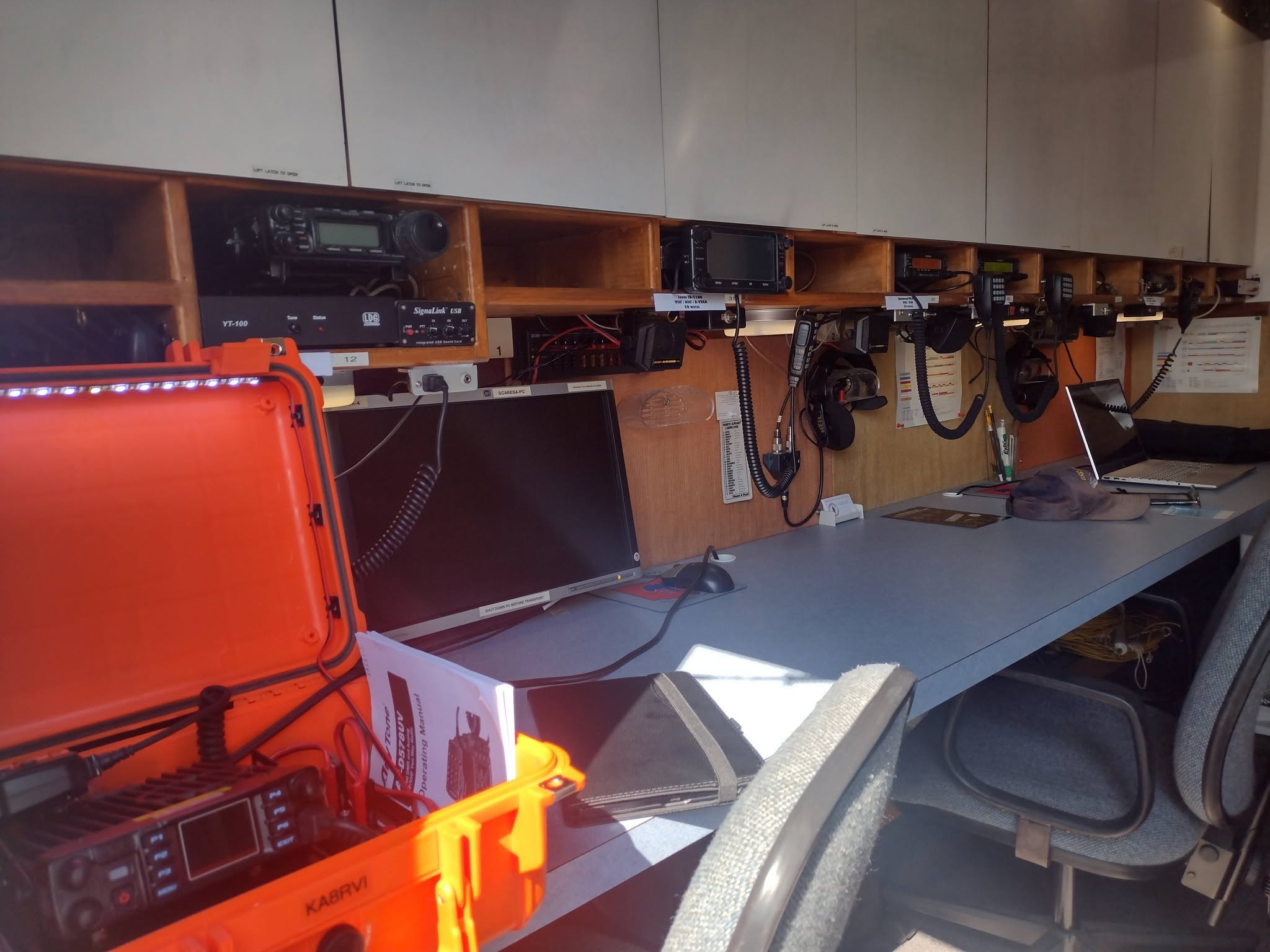

Note the overhead cabinets (with Dry Erase pained surfaces), corkboard for notes and noise suppression, plenty of places to mount radios inside cubbies as well as underneath the cubbies or atop the desktop.

OBJECTIVES
==========
  Easily re-configurable per desired "Mission"
      o STEM       --- Easy to huddle around one radio for demonstrations
      o Scouts     --- Easy to huddle around one radio for demonstrationa
      o Field Day  --- Multiple Operating positions
      o EMCOMM     --- Multiple Operating positions and LONG DURATION
      + Storage    --- Easy to store year round when not in service

   Quickly readied for deployment and pack-up/shutdown
      o Everything bolted down
      o Antennas/Chairs/Gear easily and quickly and securely stowed


DESIRED DESIGN CONSIDERATIONS
=============================
   --- Bench Height
         o Movable section for "Special Needs ADA"
         o Multiple holes/ovals for cables/coax to go through

   --- Plenty of AC outlets  ["Wiremold" power strip]
       (above desktop)

   --- Plenty of Anderson Power-Poles
       (PVC boxes and PVC conduit - above destop)

   --- Plenty of USB outlets (USB 3.0 for higher power devides)
       (in PVC boxes along with Power-Pole outlets, above desktop)

   --- Wide CABLE TROUGH for coax, control, and audio cables.
       (under the desktop)

   --- General overhead *and* Individual workstation lighting (12vdc)

   --- Solid/Dependable power management
       Battery State-Of-Charge (SOC) (Voltage) (Current) (KWH)

   *** All safely wired per NEC/DOT standards
        stranded wire, proper insulation, abrasion/vibration,
        conduits/channels

   --- WHITE BOARD SURFACES (paint)

   --- Corkboard surfaces

   --- Evironmentally *COMFORTABLE*
          o Ventillation/Airflow
	  o Temperature control

   --- Sound/Interferance between operating positions

   --- EMCOMM "Traffic Desk" (eliminates people coming and going)

   --- Pulldown "topographical" and "street" maps on wall opposite operating positions


ANTENNAS
========

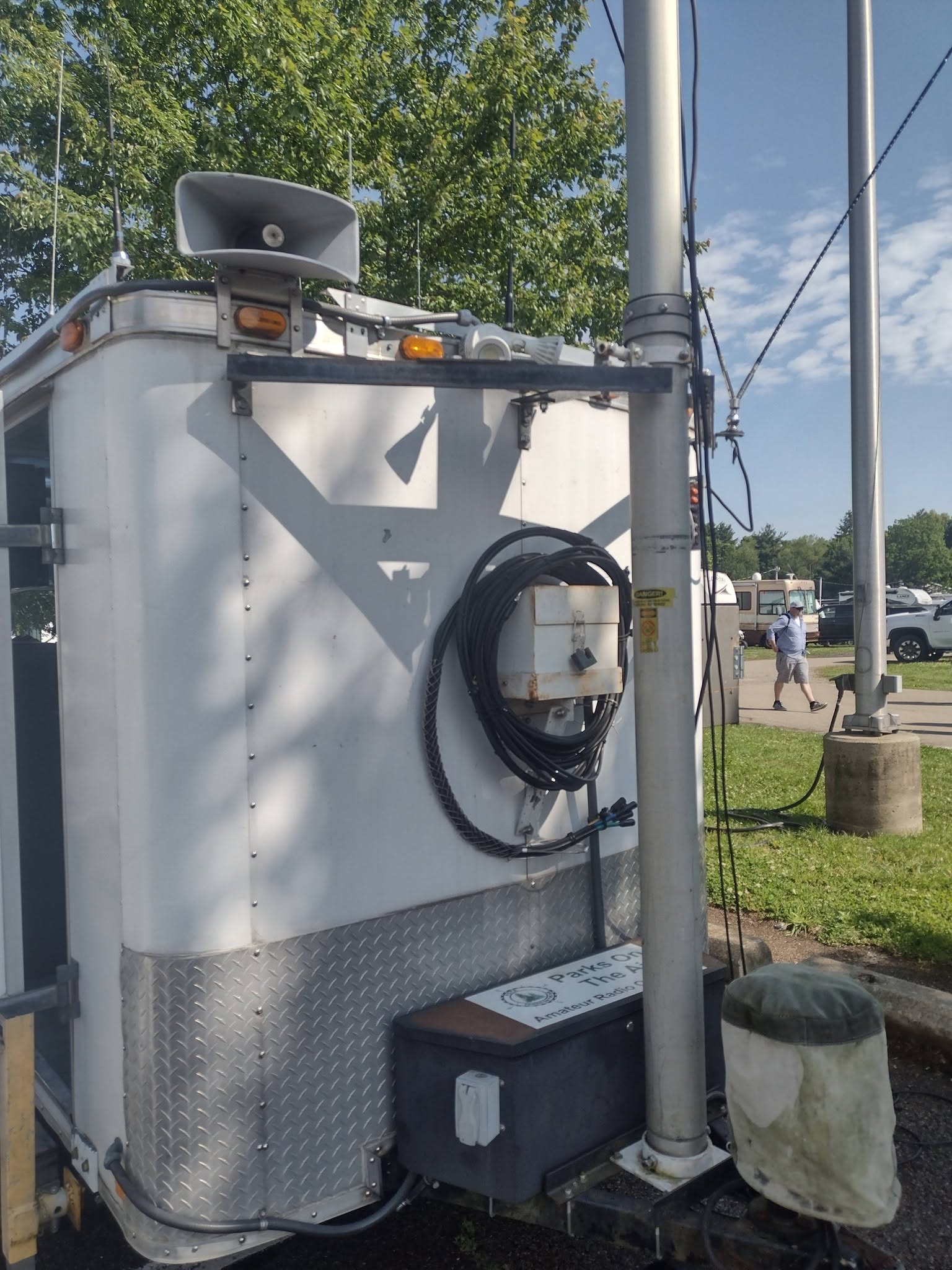

   + Crank up mast

   + "Marine Mounts" for fold-up dual/band hi-gain antennas

   + Stowage for Masts/Guys/Anchors/Antennas/Feedlines/etc.


POWER
=====
   Everything is hunky-dory until the power fails....
   "Three is Two, Two is One, and One is NONE!"

   + PRIMARILY depend upon a large capacity 12VDC Battery Bank
     (Field Day proved how much capacity is "enough")

   + Secondarily depend upon Portable Generator (small)

   !!! RAPID CHARGER so Batts can be recharged quickly (saving fuel)

   + Solar recharging (enough to run all loads PLUS recharge for nightime loads)

   +++ Victron is RFI QUIET and very dependable
       MPPT Solar Charger Controllers
       AC Inverter (with Shore Power sharing/charging)
       Management and SYSTEM STATUS DISPLAY


LIGHTING
========

   interior....

   exterior....


ENVIRONMENTAL
=============
   +++ Multiple small FANS that are 'steerable' where you need it

   +++ *EFFICIENT* and QUIET !!!!!
        o RV style rooftop AC  ($1200 for 10K BTU)
           - LOUD!!!
           - Not terribly efficient (12 Amps to chill two ice-cubes)

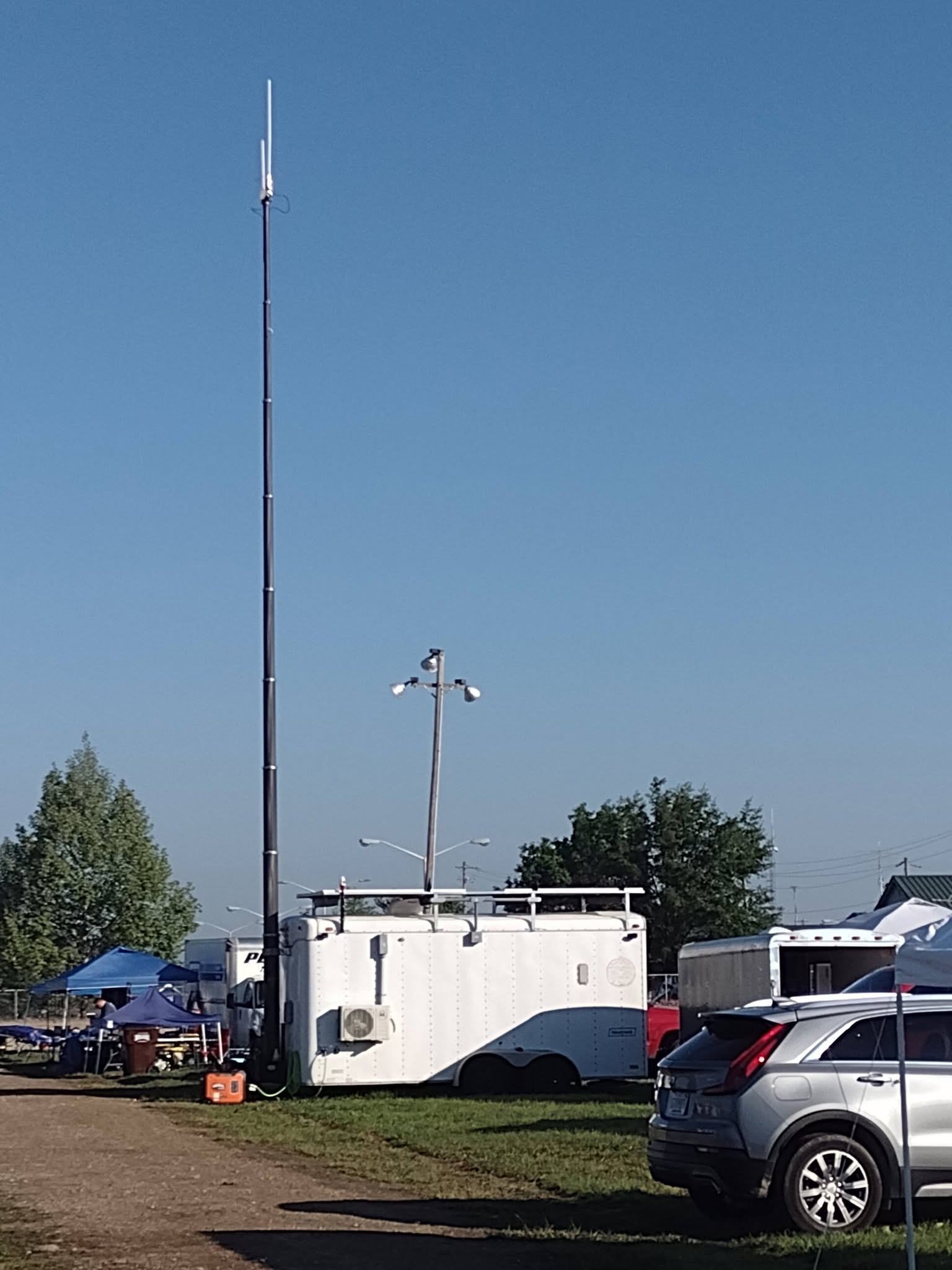

        o MINI-SPLIT  ($1200 for 10K BTU)
           - Very quiet
           - Much more efficient at cooling an area
             (outdoor unit needs to be in view Driver when manuevering)


TOOLS and SUPPLIES
==================

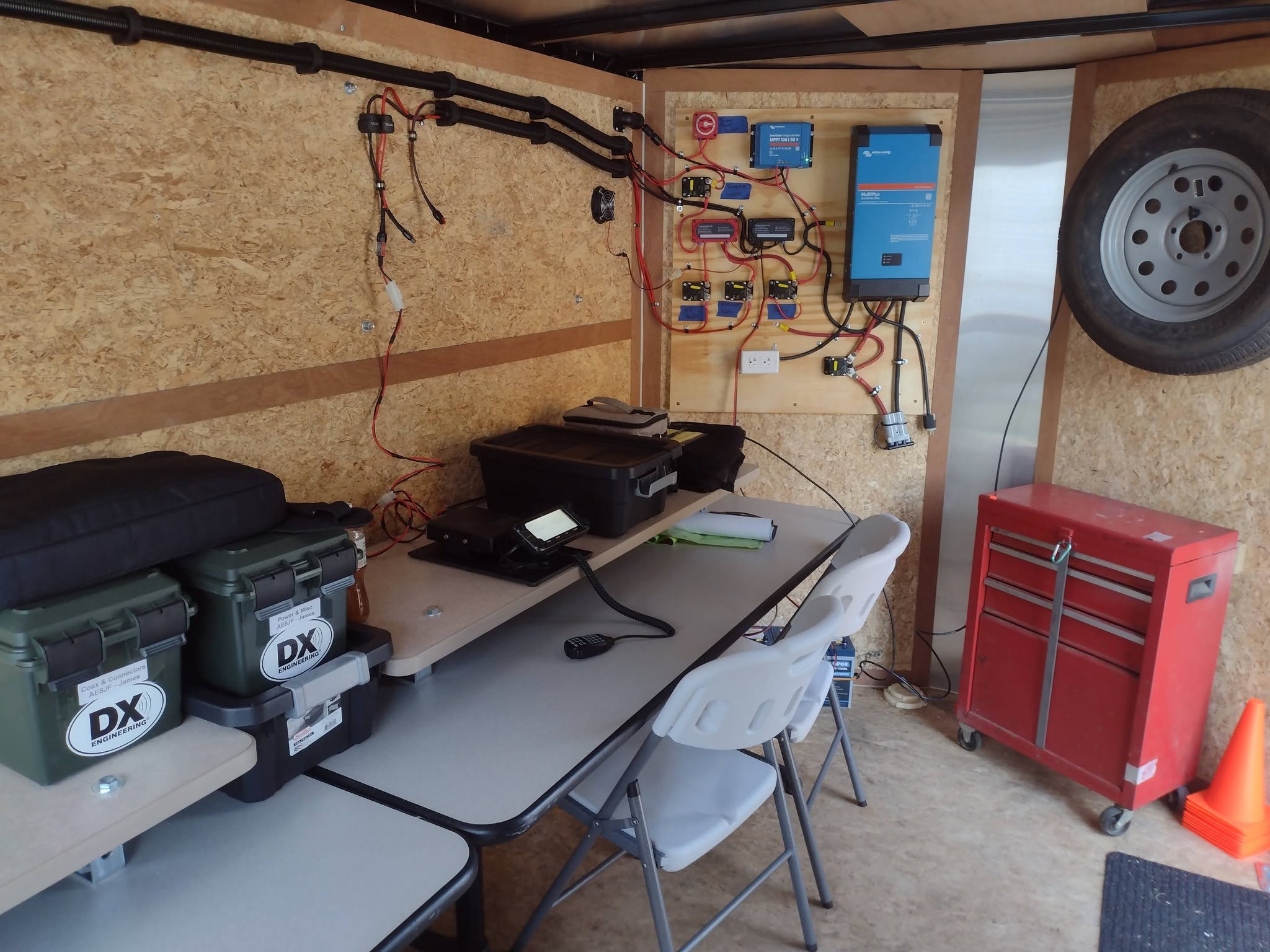

    + Bolted down tool chest  (like that shown in pic of James' trailer, below)

FIRST AID
=========
    + Well-stocked First Aid kit

    + FIRE EXTINGUISHERS (at both ends)
